Eco Box

Eco Box

The Eco Box is a 4ft wide, single axle unbraked trailer, available in four different sizes. To further customise your trailer, door and ramp options are available, in addition to a range of colours and optional extras. The Eco Box is the perfect choice for domestic or light business use. Depending on your towing vehicle, the Eco Box can be rated at either 500kg, 650kg, or, 750kg. Depending on availability from our suppliers we may use alternative parts or materials of equal quality.

Trailer Specifications

  • 500KG or 750kg unbraked single axle with 500X10 6ply tyres
  • Bradley D201 cast coupling
  • 48mm jockey wheel and 34mm rear prop stands

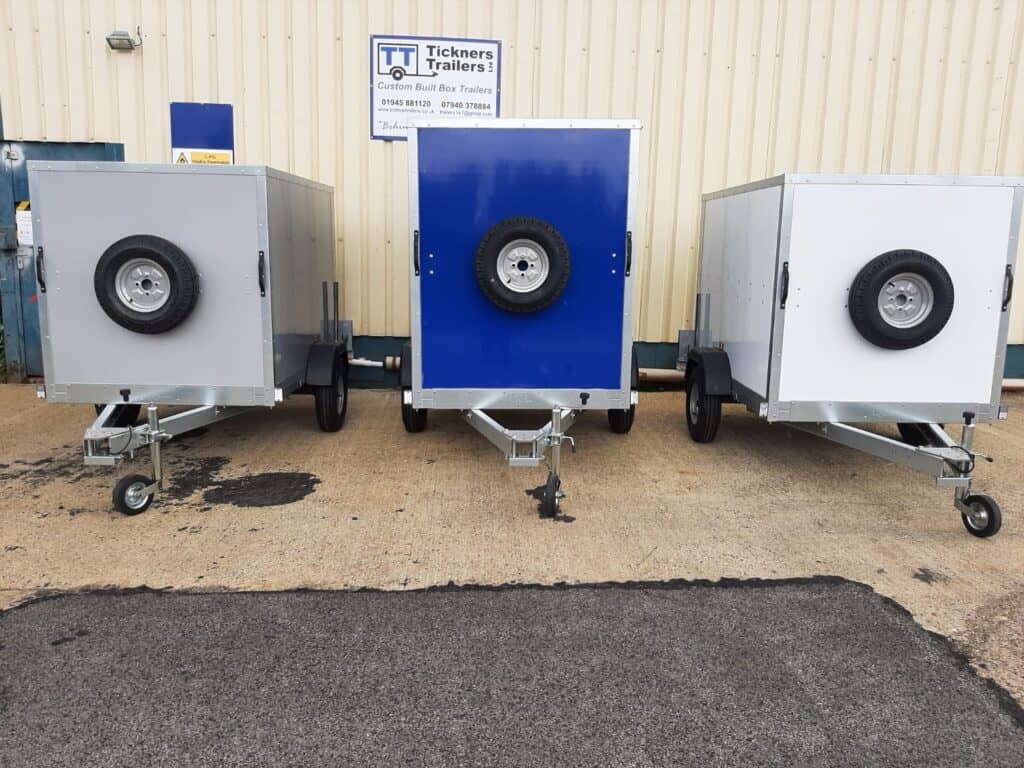

  • Fitted spare wheel
  • Galvanised chassis and metalwork
  • 12mm Phenolic coated birchwood floor
  • 4 tie down rings and lashing rail

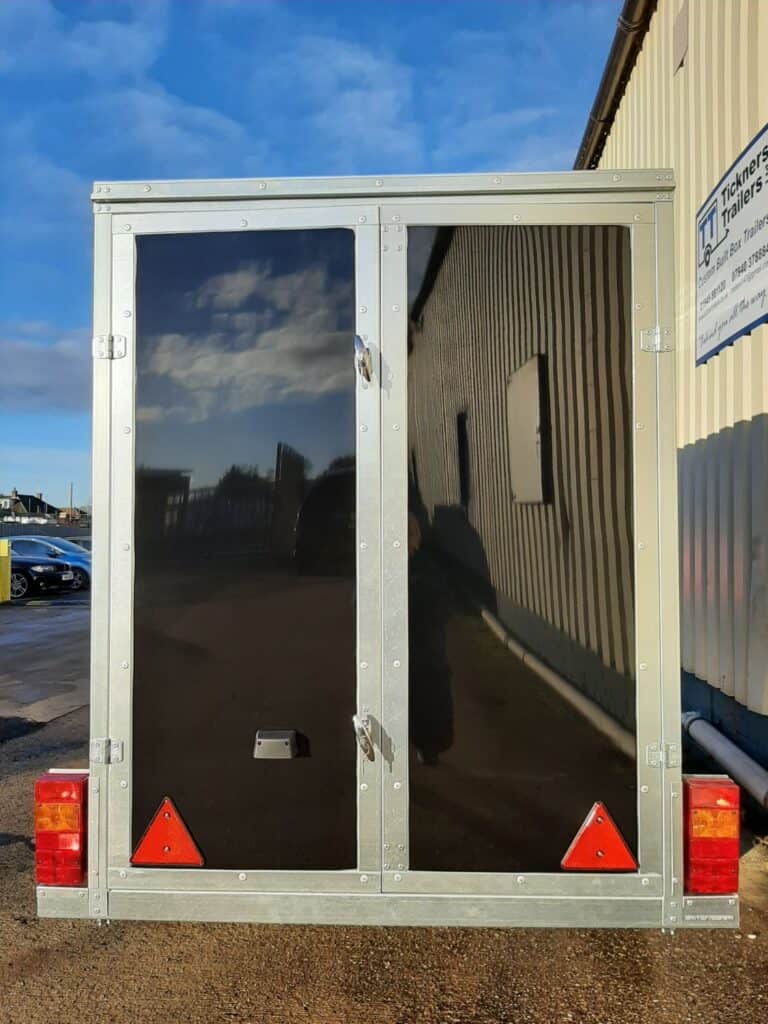

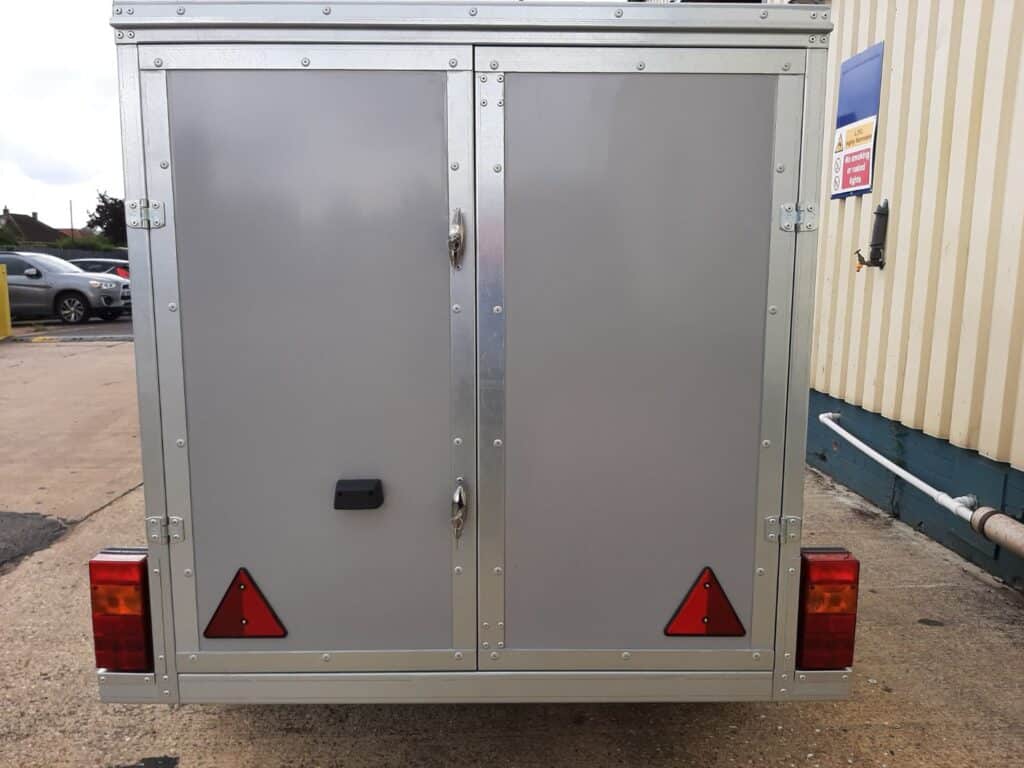

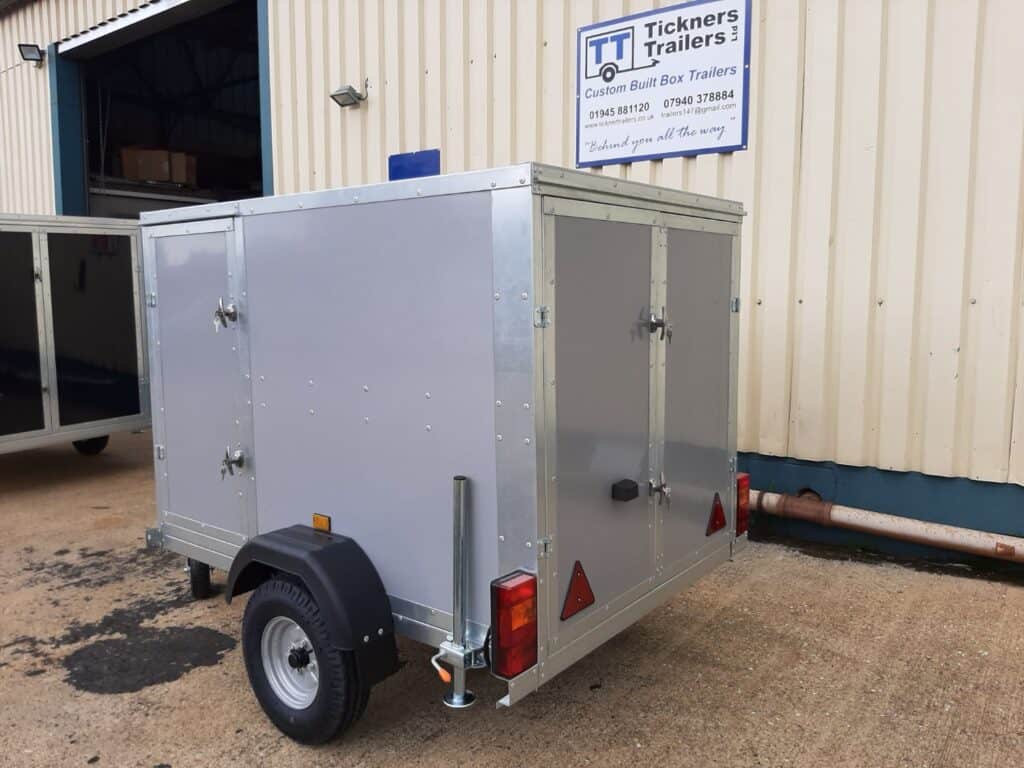

  • Twin rear barn doors with two locking T handles

Optional Extras

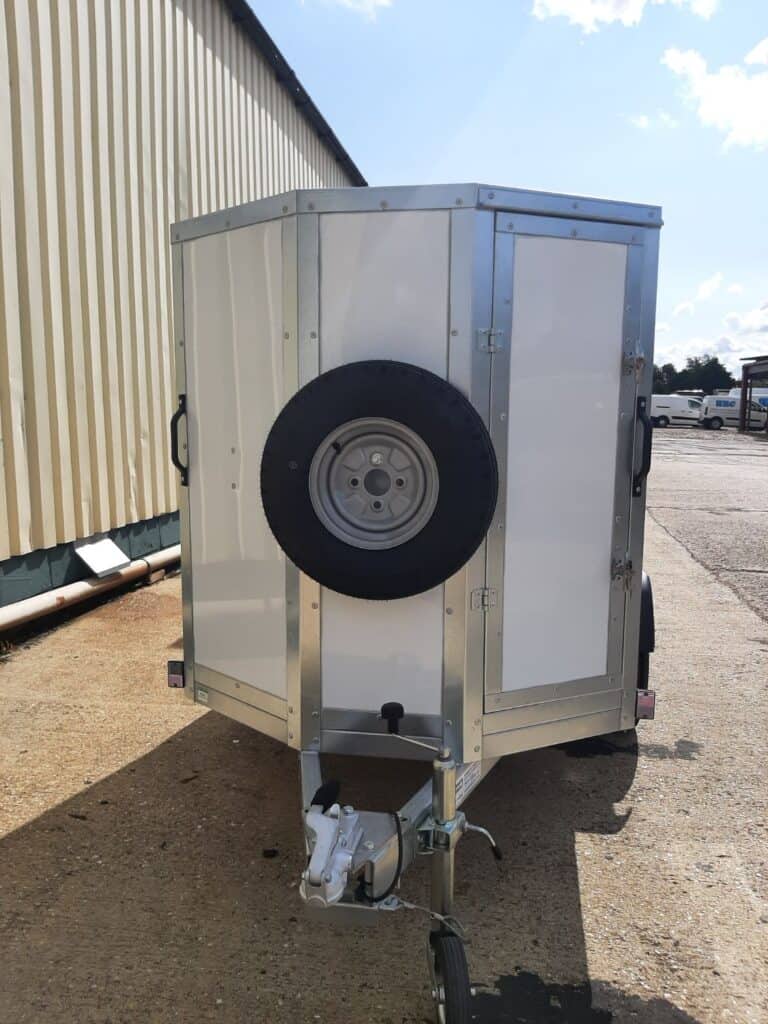

  • Shaped front & door

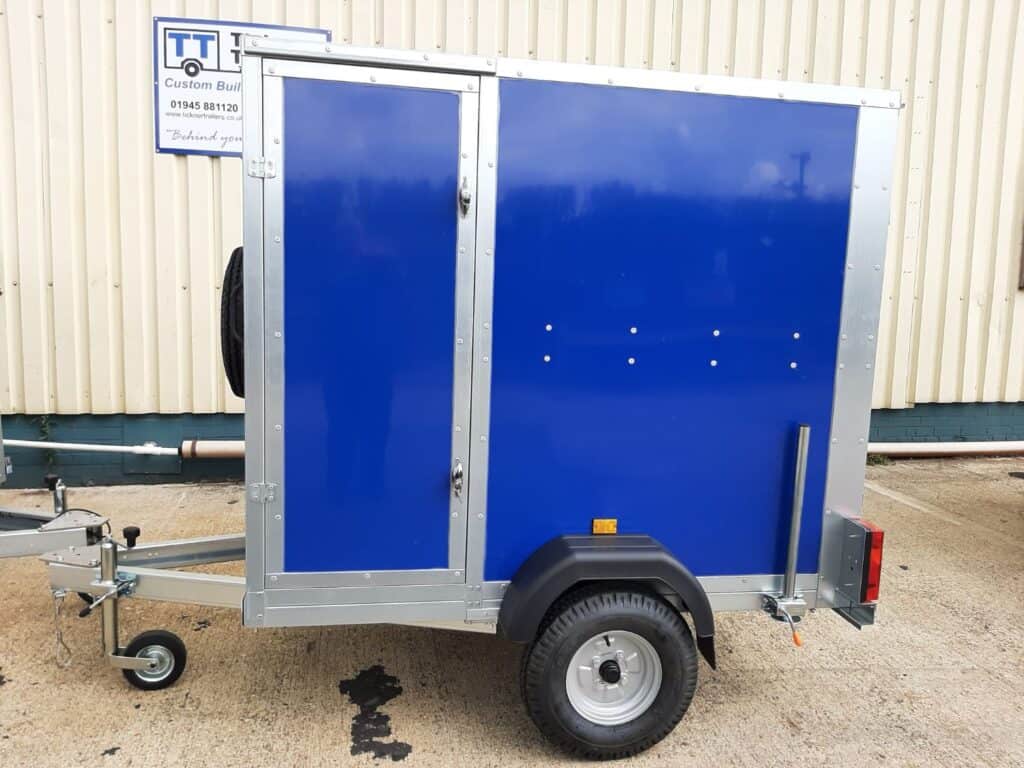

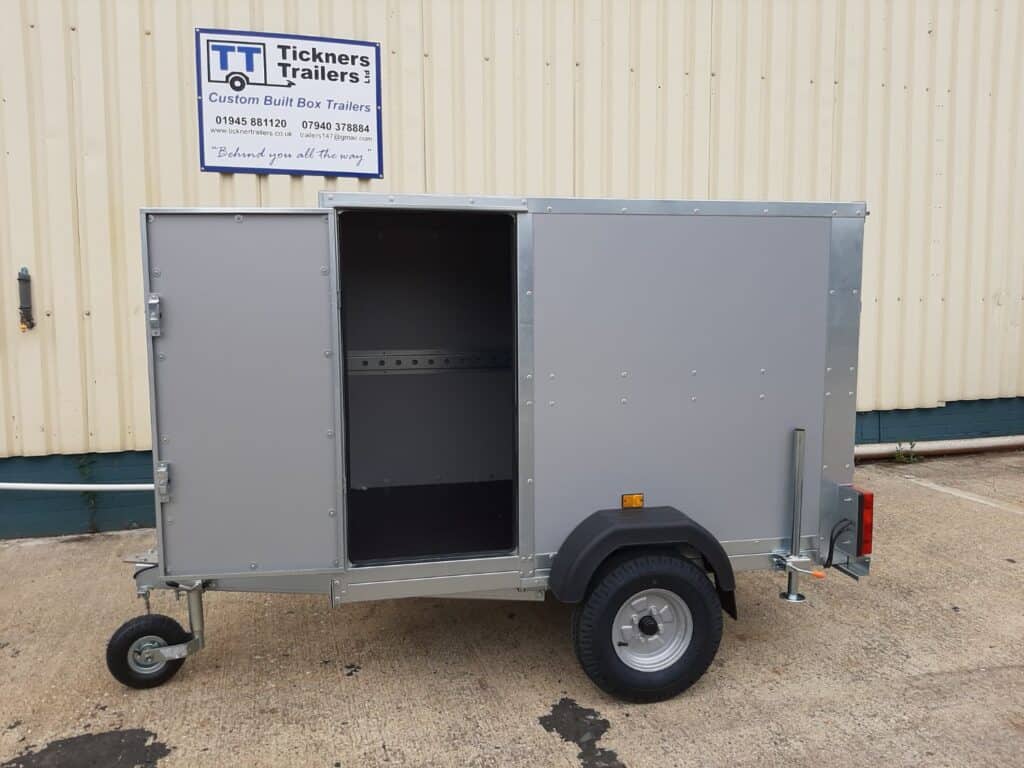

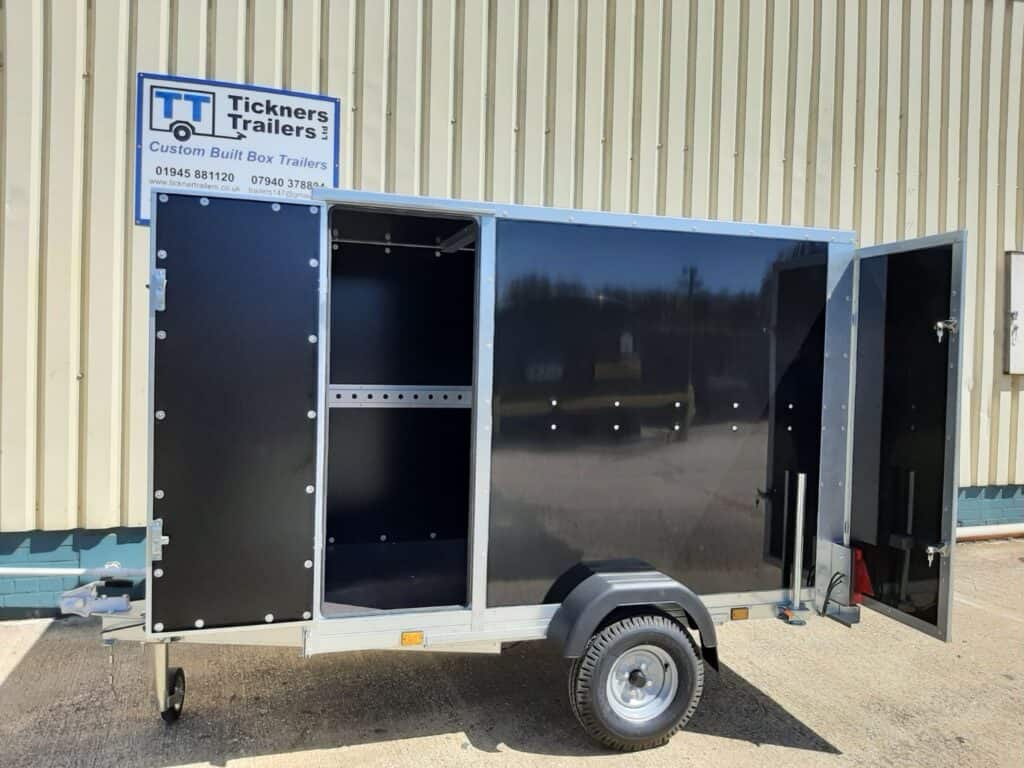

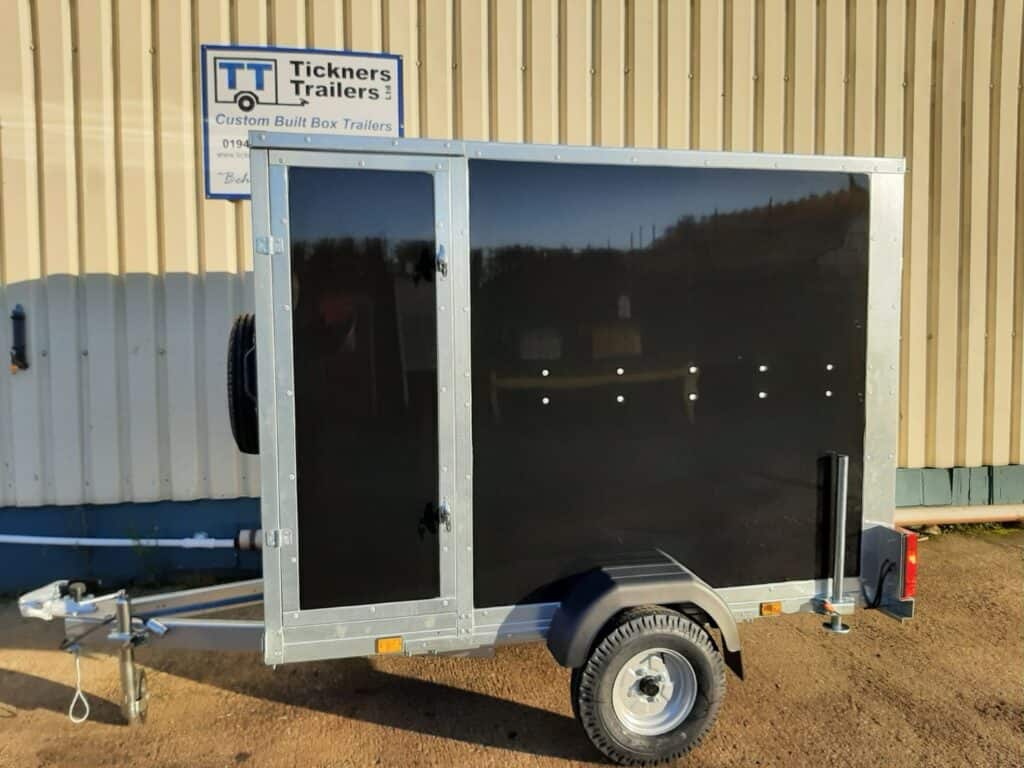

  • Side door
  • Ramped tailgate
  • Heavy duty recessed deck rings

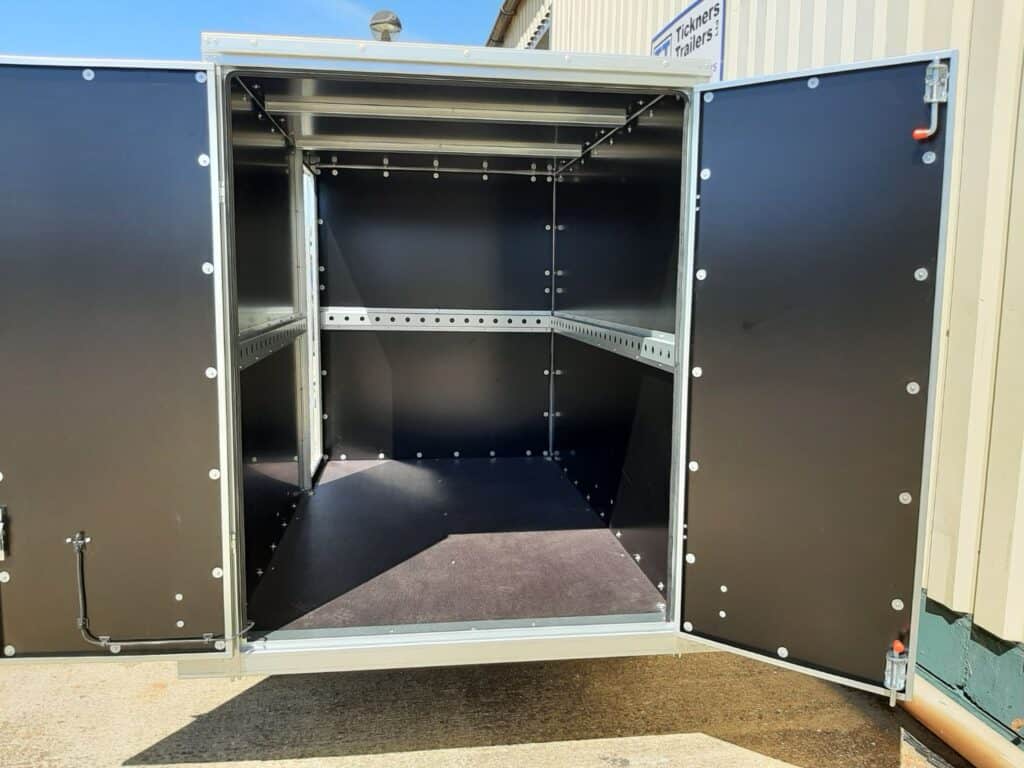

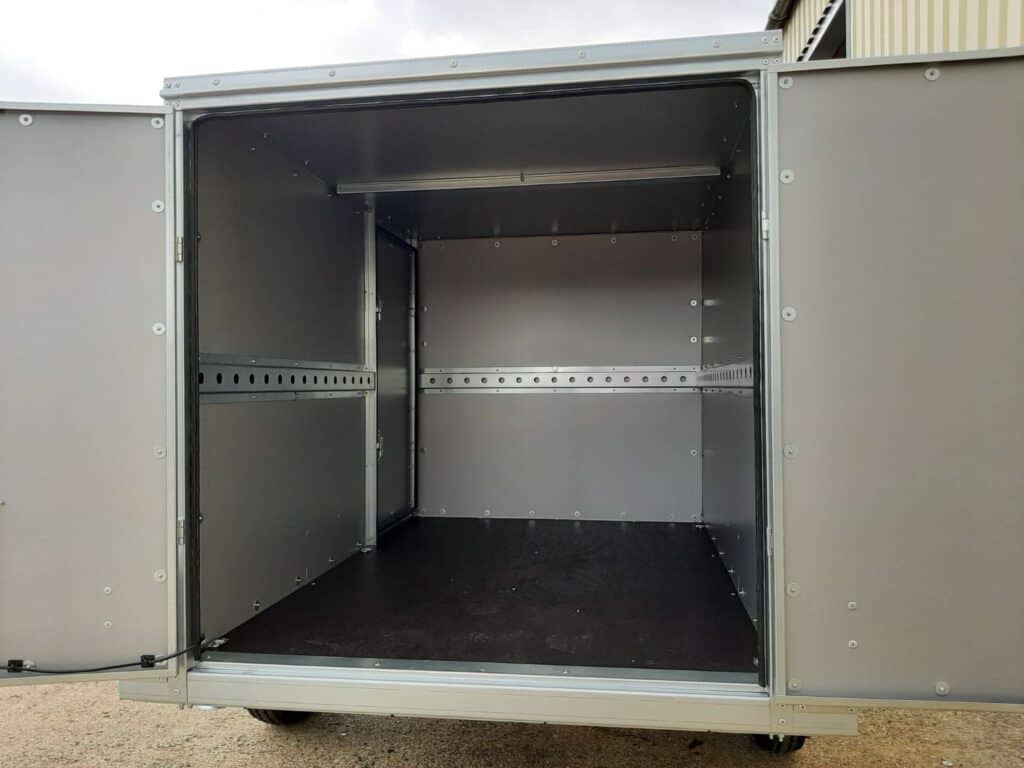

  • Shelving system
  • Roof bars

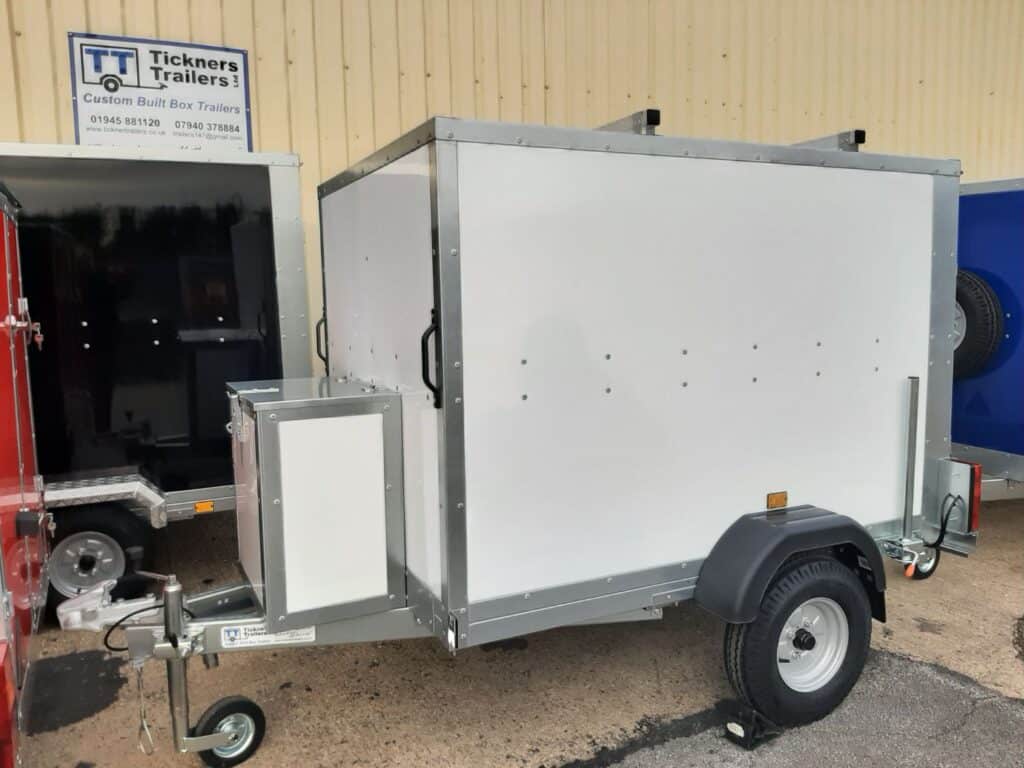

  • Front storage box

  • Colour options
Please Note:
The shaped front option adds 285mm in the centre section of the trailer.
The rear opening is slightly narrower due to the door or ramp reveals.

Trailer Sizes & Capacities

Trailer Gross WeightUnladen WeightInternal LengthInternal WidthInternal HeightOverall LengthOverall WidthOverall Height
ECO644500kg205kg1800mm1175mm1190mm2770mm1595mm1690mm
ECO644750kg215kg1800mm1175mm1190mm2770mm1595mm1690mm
ECO645500kg225kg1800mm1175mm1470mm2770mm1595mm1960mm
ECO645750kg235kg1800mm1175mm1470mm2770mm1595mm1960mm
ECO744500kg260kg2100mm1175mm1190mm3080mm1595mm1690mm
ECO744750kg270kg2100mm1175mm1190mm3080mm1595mm1690mm
ECO745500kg265kg2100mm1175mm1470mm3080mm1595mm1960mm
ECO745750kg275kg2100mm1175mm1470mm3080mm1595mm1960mm
Scroll to see all specifications

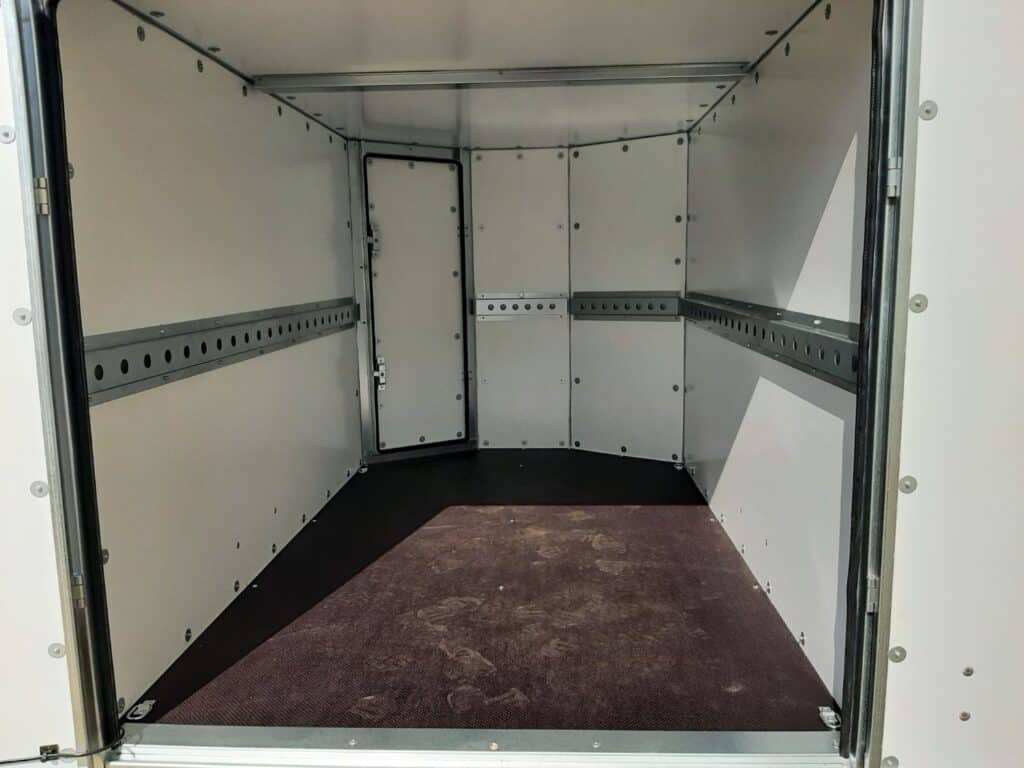

Gallery

Polite Notice: We do not accept visitors to the workshop to look around. We are a busy factory and not a showroom. Please contact your nearest dealer to arrange a viewing of the trailers.
