GB Twin Axle Braked Box Trailer

GB Twin Axle Braked Box Trailer

The GB Braked Axle Box is available in eight different sizes, plus a choice of 5 or 6ft width. Suitable as a towing vehicle for heavier motorcycles such as Harleys, Goldwings, and trikes, the GB can be rated at 1200, 1400, 1600, or 1800kg.
We have built these for model steam trains and 6inch scale traction engines and prove to be popular with driving schools for B+E training and light removals. Depending on availability from our suppliers we may use alternative parts or materials of equal quality.

Trailer Specifications

  • Two braked axles with 500X10 8ply tyres
  • Knott Kfg20 coupling with lock and handbrake

  • 13 pin Euro style plug with reverse light

  • Aluminium treadplate mudguards with mudflaps

  • 48mm serrated jockey wheel and 34mm rear prop stands
  • Fitted spare wheel

  • Galvanized chassis and metalwork

  • 12mm Phenolic coated birchwood floor

  • 4 tie down rings and lashing rail

  • Twin rear barn doors with two locking T handles
  • Suitable for domestic & light business use

Optional Extras

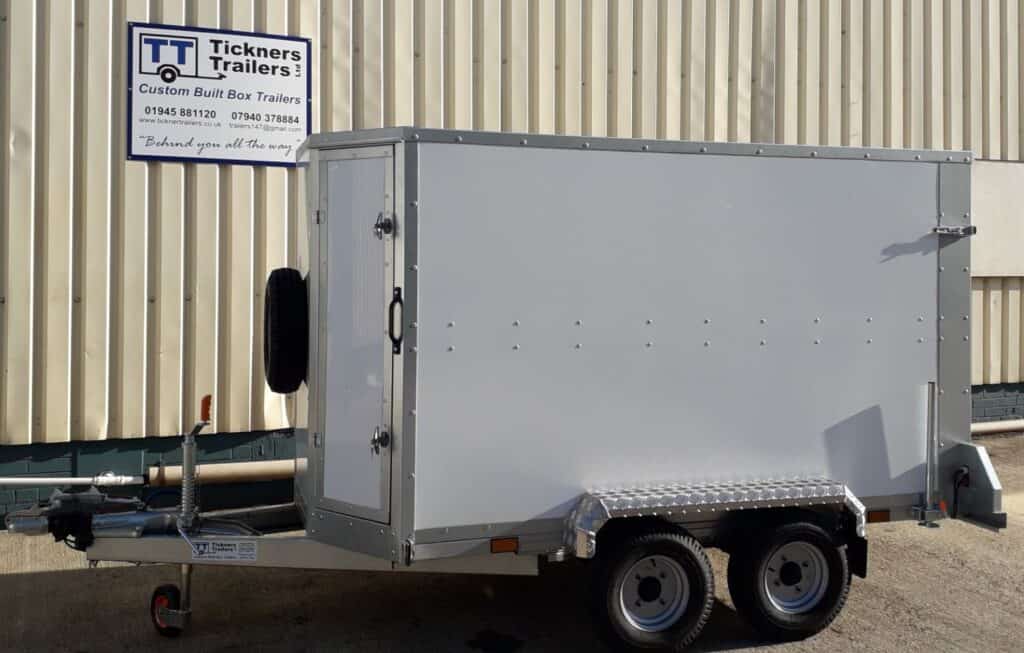

  • Shaped front and door
  • Side door

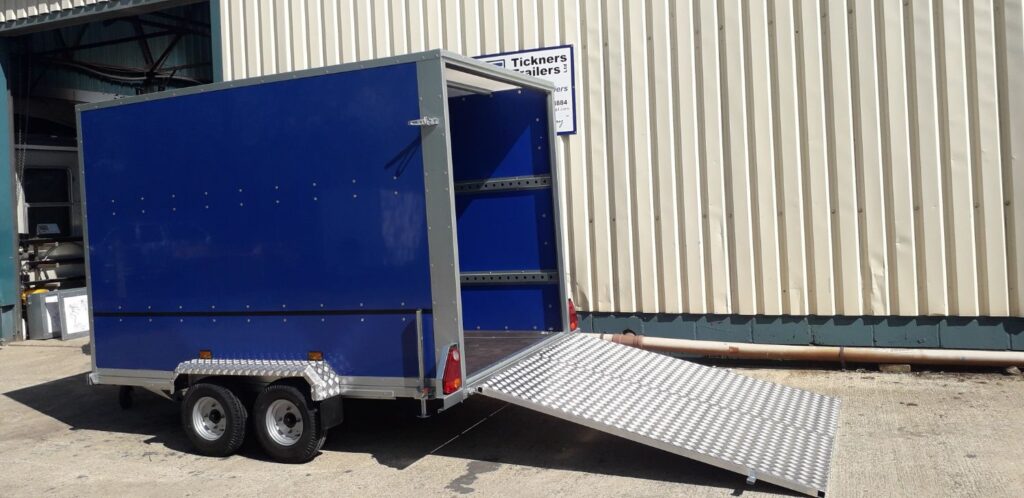

  • Ramped tailgate
  • Karting systems
  • Motorcycle wheel chocks
  • Heavy duty recessed deck rings

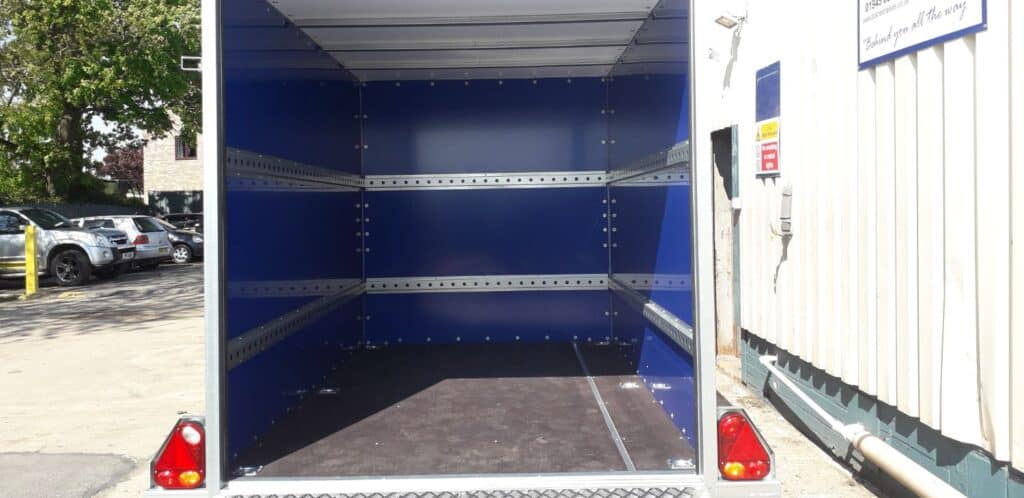

  • Shelving system
  • Roof bars
  • Colour options

Trailer Sizes & Capacities

Trailer Gross WeightUnladen WeightInternal LengthInternal Width 5ftInternal Width 6ftInternal HeightOverall LengthOverall Width 5ftOverall Width 6ftOverall Height
GB7551800kg405kg2100mm1455mm1755mm1470mm3370mm1950mm2250mm1960mm
GB7561800kg440kg2100mm1455mm1755mm1920mm3370mm1950mm2250mm2410mm
GB8551800kg450kg2430mm1455mm1755mm1470mm3700mm1950mm2250mm1960mm
GB8561800kg475kg2430mm1455mm1755mm1920mm3990mm1950mm2250mm2410mm
GB9551800kg495kg2720mm1455mm1755mm1470mm3990mm1950mm2250mm1960mm
GB9561800kg520kg2720mm1455mm1755mm1920mm4235mm1950mm2250mm1960mm
GB1551800kg540kg2965mm1455mm1755mm1470mm4235mm1950mm2250mm1960mm
GB1561800kg565kg2965mm1455mm1755mm1920mm4235mm1950mm2250mm1960mm
Shaped Front+40kg+285mm+250mm
Ramped Tailgate+10kg-25mm
Scroll to see all specifications

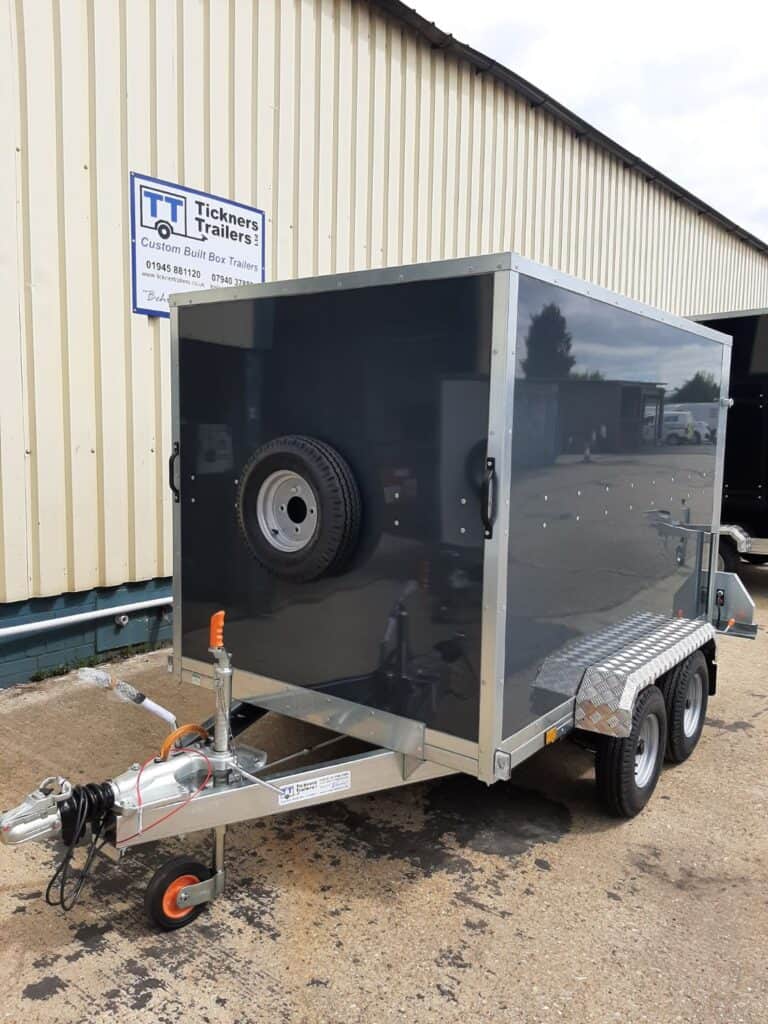

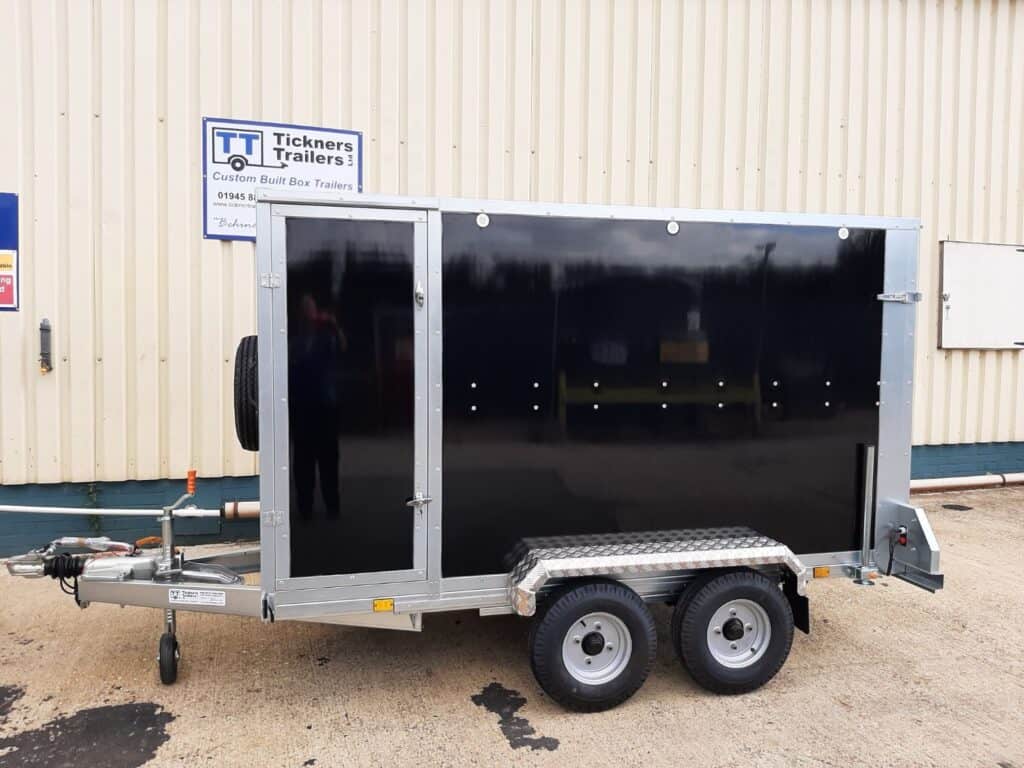

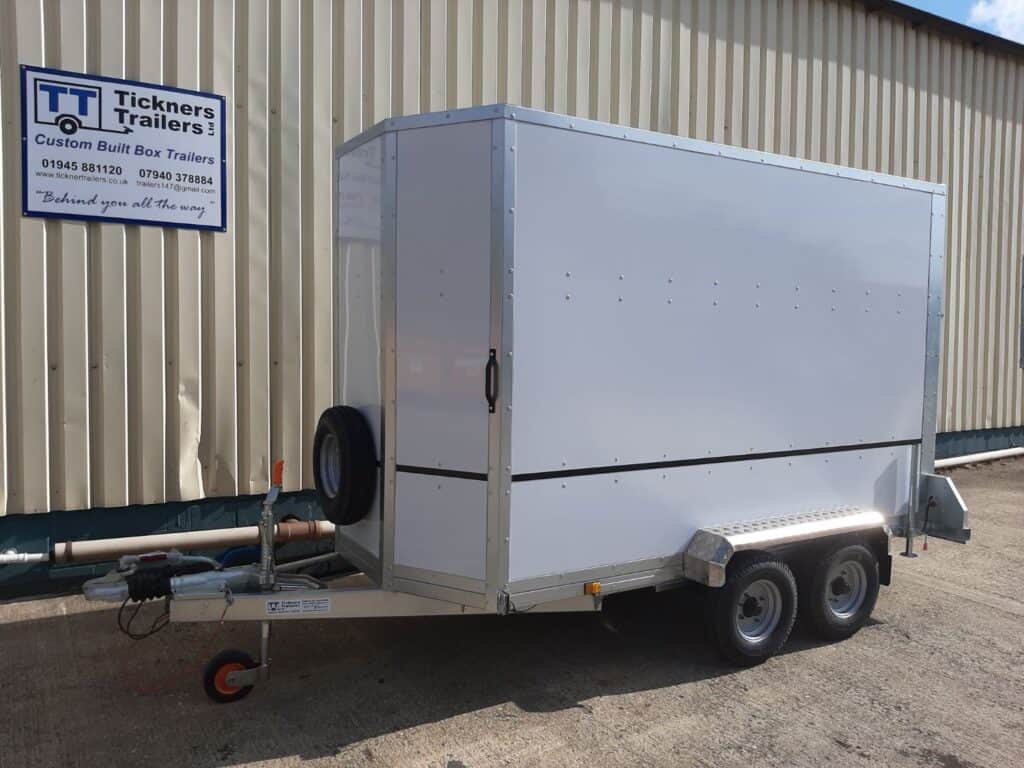

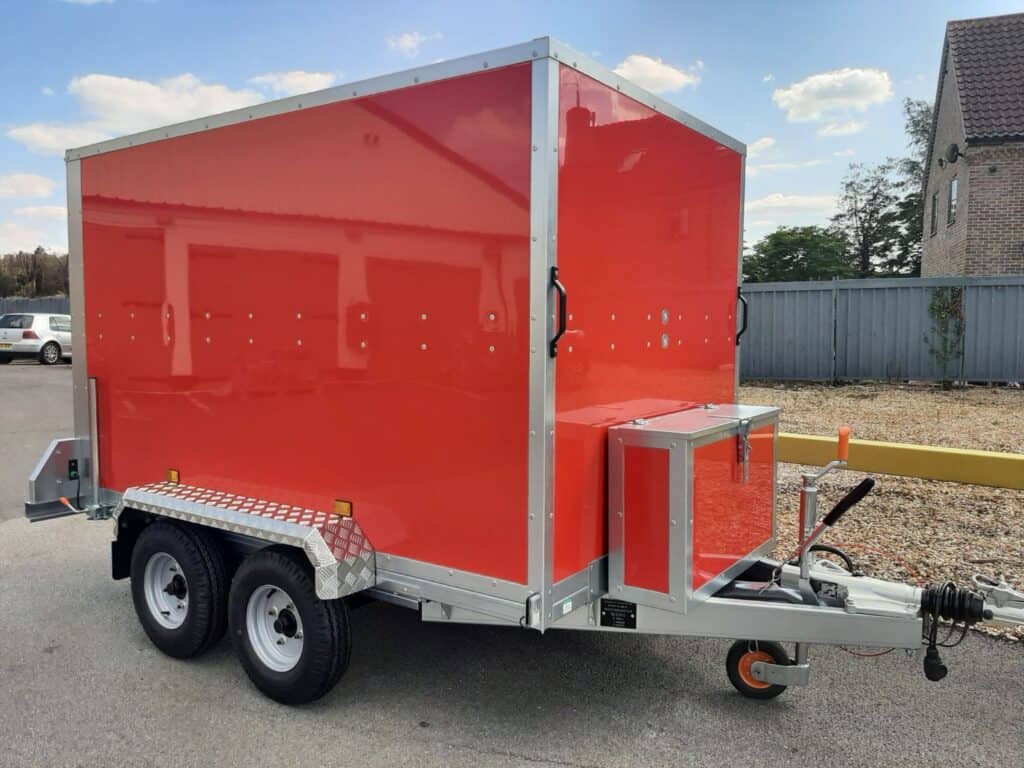

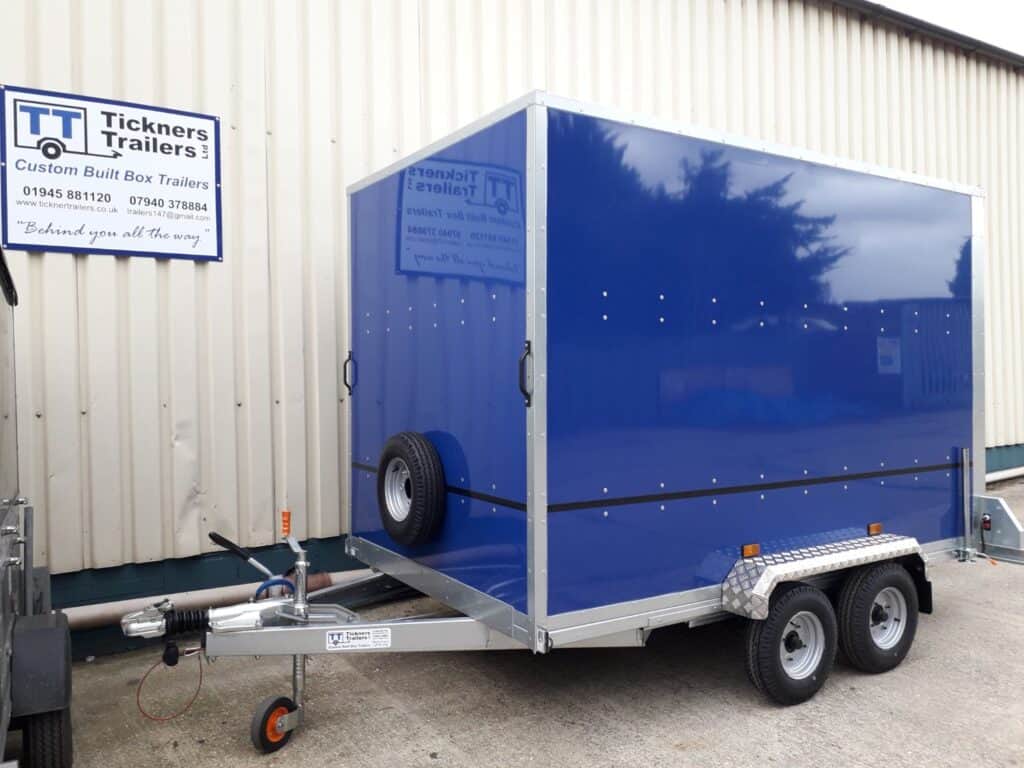

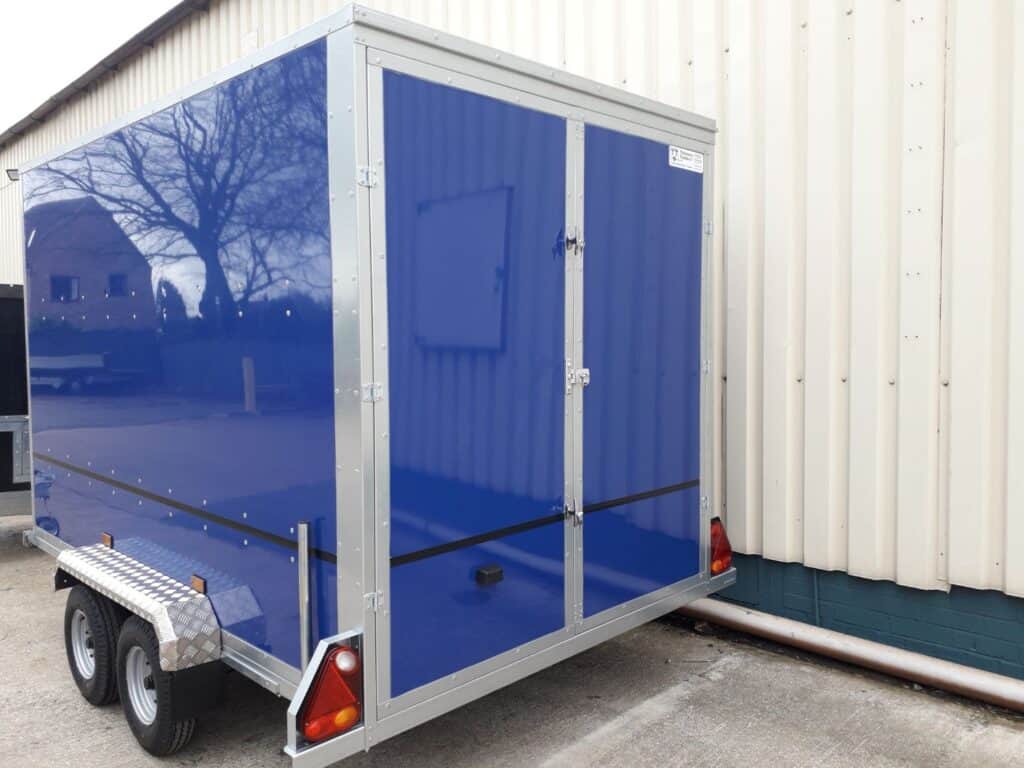

Gallery
